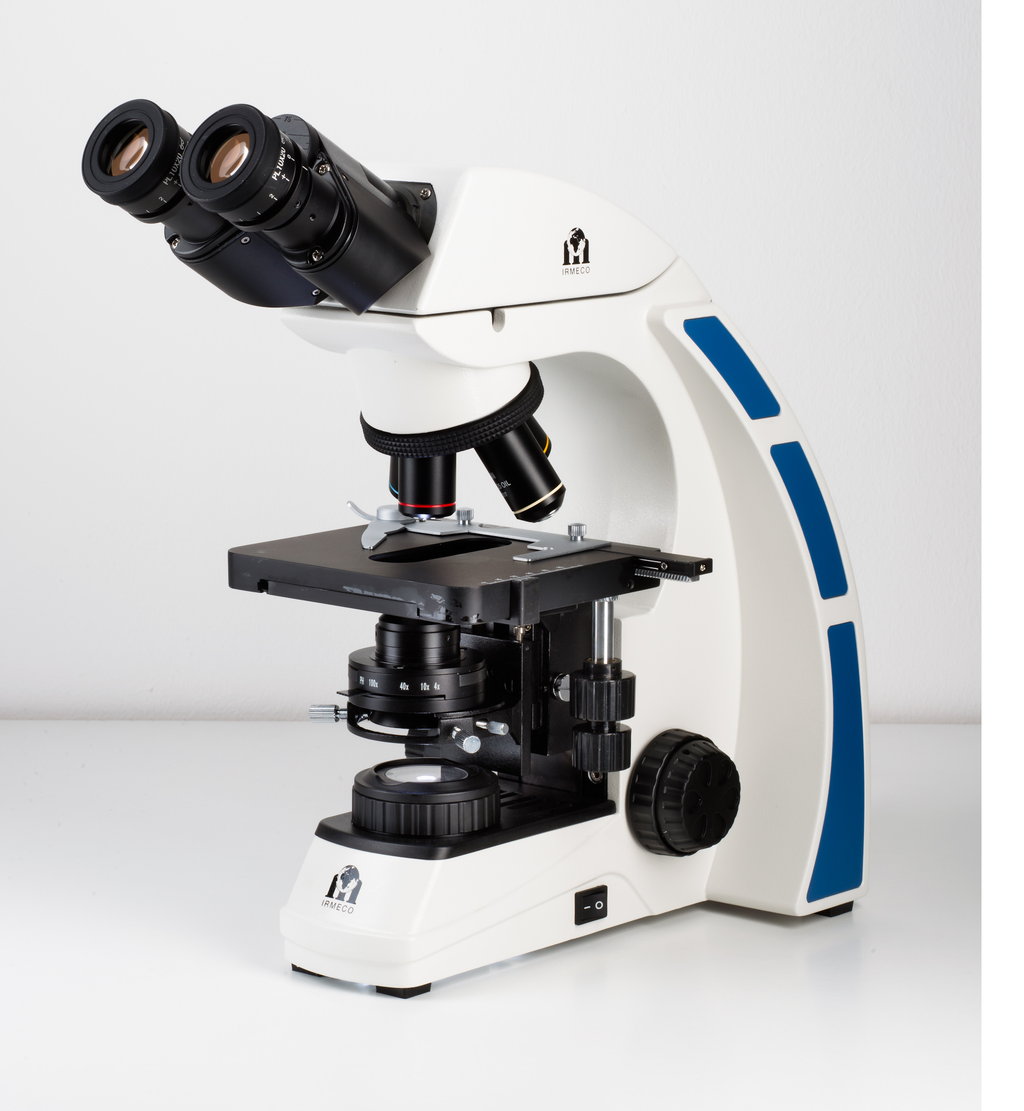

The Professional Biological Microscope for teaching purpose at laboratory level; innovative and safe design for adaptability and stability; equipped with universal infinity-corrected optical system (UIS) paired with extra bright LED illumination.
Head:
Siedentopf Binocular head,
360° rotatable, interpupillary distance 54-75 mm, with diopter adjustment
Optical System:
Universal infinity color corrected optical system
Stand:
Ergonomically designed, comfortable low position coaxial coarse, fine focusing controls, adjustable tension control. Easily adjustable focus stop allows for rapid image focusing while protecting specimens and objectives. It is equipped with a comfortable handgrip.
Stage:
Double-layered large mechanical stage 140 x 132 mm with single slide clip.
Travel area 76 x 50 mm, with low position control, specimen holder
Focusing:
Coaxial coarse & fine focus adjustment (precision 0.002 mm)
Condenser:
Centerable N.A. 1.25 Abbe
condenser with iris diaphragm
and filter holder
Eyepiece:
PL10x/18mm
Objectives: Infinity Plan achromatic, magnification
4x, 10x, 40x, 100x (Oil)
Illumination:
Koehler illumination with ultra-high brightness
LED cold light with brightness control
